Pipe Making Plant

• Accessories
• Vacuum Tank, Haul Off, Cutter, Extruder, Die Head, Control Panel

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• 80-300 kg/hr

• Color
• Blue / White / Customized

• Computerized
• Yes

• Control System
• Other, PLC Controlled

• Dimension (L*W*H)
• 18m x 2.5m x 2.8m

• Drive Type
• Electric

• Driven Type
• Gear

• Efficiency (%)
• Up to 95%

• Features
• High Efficiency, Robust Construction, Smooth Operation

• Frequency
• 50 Hz

• Installation Guideline
• Onsite Installation & Commissioning Available

• Machine Type
• Extrusion Line

• Material
• Mild Steel, Stainless Steel

• Model No
• PVC-PP-800

• Motor Power
• 30-50 HP

• Plastic Processed
• PVC

• Power
• 60 kW

• Power Consumption
• 55-60 kW

• Production Capacity
• 100-250 kg/hr

• Speed
• 12-60 m/min

• Surface Finish
• Other, Powder Coated

• Temperature Range
• 0C to 300C

• Type
• PVC Pipe Plant

• Usage & Applications
• Manufacturing of PVC Pipes for Agricultural, Electrical & Water Supply

• Voltage
• 380V / 415V

• Weight (kg)
• 4500 kg

• Accessories
• Vacuum Tank, Haul-off Unit, Cutter, Die Head

• Automatic Grade
• Automatic

• Automation Grade
• Automatic

• Capacity
• Up to 200 kg/h

• Color
• Blue & White

• Computerized
• Yes

• Control System
• PLC Control

• Dimension (L*W*H)
• 7200 mm x 1500 mm x 2000 mm

• Drive Type
• Electric

• Driven Type
• AC Motor

• Efficiency (%)
• Greater than 90%

• Features
• High Output, Low Maintenance, Robust Structure, Efficient Cooling System

• Frequency
• 50 Hz

• Installation Guideline
• On-Site Installation & Commissioning Support Provided

• Machine Type
• Pipe Extrusion Machine

• Material
• Mild Steel

• Model No
• HDP-450

• Motor Power
• 37 kW

• Plastic Processed
• HDPE (High Density Polyethylene)

• Power
• 45 kW

• Power Consumption
• Approx. 45 kWh

• Production Capacity
• 40-110 mm Pipe Diameter

• Speed
• Up to 30 m/min

• Surface Finish
• Other, Powder Coated

• Temperature Range
• 0C to 300C

• Type
• HDPE Pipe Machine

• Usage & Applications
• Manufacturing HDPE Pipes for water supply, gas distribution, agriculture

• Voltage
• 380V

• Weight (kg)
• Approx. 3200 kg

• Automatic Grade
• Automatic

• Color
• Blue and White

• Control System
• PLC Control

• Drive Type
• Electric

• Power
• 75 Horsepower (HP)

• Type
• Fully Automatic

• Voltage
• 75 Horsepower (HP)

• Warranty
• 1 year

• Automatic Grade
• Semi-Automatic

• Capacity
• KG/HR Kg/hr

• Color
• WHITE & BLUE

• Computerized
• Yes

• Control System
• PLC Control

• Drive Type
• Belt Type

• Material
• EN-41 B MOSCOW

• Type

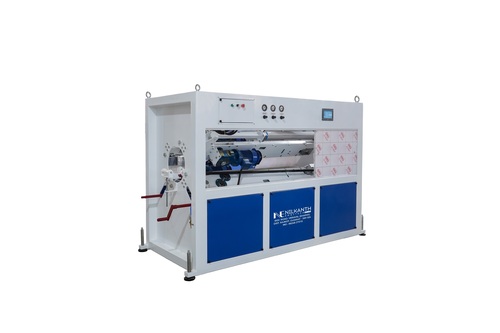

• Pipe Traction Machine

• Warranty
• 1 YEAR FOR MANUFACTURING DIFFECT

• Automatic Grade
• Automatic

• Capacity
• 5 to 10 Ton/day

• Computerized
• Yes

• Control System
• Human Machine Interface

• Drive Type
• Electric

• Material
• MS

• Voltage
• 415 Volt (v)
