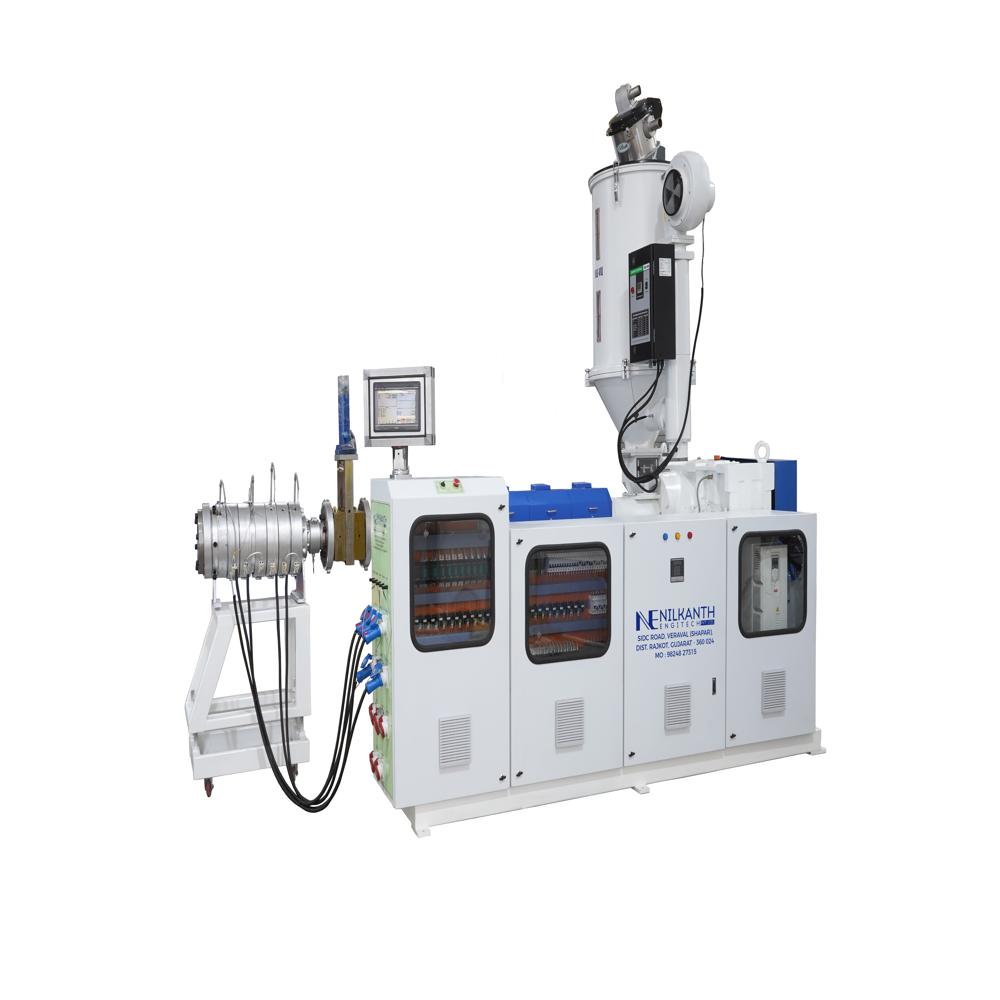

hdpe pipe production machine

400000.0 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

hdpe pipe production machine Price And Quantity

Price 400000.0 INR/Piece
Minimum Order Quantity 1 Piece

Product Description

Parameter	Typical Specification
Product Name	HDPE Pipe Extrusion Machine
Application	HDPE pipe manufacturing
Raw Material	HDPE, PE80, PE100
Extrusion Process	Continuous screw extrusion
Screw Material	High-quality alloy steel, nitrided
Screw Diameter	45120 mm, depending on model
L/D Ratio	30:138:1
Pipe Diameter Range	20630 mm, depending on configuration
Production Capacity	Approximately 501,000 kg/hour, model-dependent
Main Extruder Motor	Approximately 15250 kW, model-dependent
Heating System	Ceramic or cast-aluminium heaters
Temperature Control	Digital / PLC-based
Calibration System	Vacuum sizing tank
Cooling System	Spray or immersion cooling tanks
Haul-Off Unit	Belt-type or caterpillar-type
Cutting System	Planetary or chip-free cutter
Control System	PLC with HMI touchscreen, optional
Power Supply	380415 V, 3-phase, 50 Hz (customizable)
Machine Configuration	Single-layer or multilayer, depending on model
Optional Equipment	Automatic dosing, gravimetric feeding, socketing machine, pipe coiler and online printing

Note: These are indicative ranges, not specifications for one verified machine model. Confirm actual output, motor power, pipe diameter range and electrical requirements with the manufacturer.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pipe Making Plant' category

PVC Pipe Plant Price Range : 900000.00 - 3000000.00 INR/Piece Minimum Order Quantity : 1 Automatic Grade : Automatic Material : Mild Steel, Stainless Steel Control System : Other, PLC Controlled Computerized : Yes Type : PVC Pipe Plant Voltage : 380V / 415V Surface Finish : Other, Powder Coated Drive Type : Electric Capacity : 80300 kg/hr Color : Blue / White / Customized Installation Guideline : Onsite Installation & Commissioning Available Model No : PVCPP800 Dimension (L*W*H) : 18m x 2.5m x 2.8m Features : High Efficiency, Robust Construction, Smooth Operation Power Consumption : 5560 kW Production Capacity : 100250 kg/hr Motor Power : 3050 HP Automation Grade : Automatic Speed : 1260 m/min Accessories : Vacuum Tank, Haul Off, Cutter, Extruder, Die Head, Control Panel Efficiency (%) : Up to 95% Temperature Range : 0C to 300C Driven Type : Gear Plastic Processed : PVC Frequency : 50 Hz Machine Type : Extrusion Line Usage & Applications : Manufacturing of PVC Pipes for Agricultural, Electrical & Water Supply Power : 60 kW Weight (kg) : 4500 kg

Send Inquiry

HDPE Pipe Machine Price Range : 900000.00 - 3000000.00 INR/Piece Minimum Order Quantity : 1 Automatic Grade : Automatic Material : Mild Steel Control System : PLC Control Computerized : Yes Type : HDPE Pipe Machine Voltage : 380V Surface Finish : Other, Powder Coated Drive Type : Electric Capacity : Up to 200 kg/h Color : Blue & White Installation Guideline : OnSite Installation & Commissioning Support Provided Model No : HDP450 Dimension (L*W*H) : 7200 mm x 1500 mm x 2000 mm Features : High Output, Low Maintenance, Robust Structure, Efficient Cooling System Power Consumption : Approx. 45 kWh Production Capacity : 40110 mm Pipe Diameter Motor Power : 37 kW Automation Grade : Automatic Speed : Up to 30 m/min Accessories : Vacuum Tank, Hauloff Unit, Cutter, Die Head Efficiency (%) : Greater than 90% Temperature Range : 0C to 300C Driven Type : AC Motor Plastic Processed : HDPE (High Density Polyethylene) Frequency : 50 Hz Machine Type : Pipe Extrusion Machine Usage & Applications : Manufacturing HDPE Pipes for water supply, gas distribution, agriculture Power : 45 kW Weight (kg) : Approx. 3200 kg

Send Inquiry

Agricultural Pipe Plant Price : 950000.0 INR/Piece Minimum Order Quantity : 1 Automatic Grade : Automatic Material : MS Control System : Human Machine Interface Computerized : Yes Voltage : 415 Volt (v) Surface Finish : Polished Drive Type : Electric Capacity : 5 to 10 Ton/day Warranty : 1 Year

Send Inquiry

Pipe Traction Machine Price : 900000.00 INR/Piece Minimum Order Quantity : 1 Automatic Grade : SemiAutomatic Material : EN41 B MOSCOW Control System : PLC Control Computerized : Yes Type : PLASTIC MACHINERY Drive Type : Belt Type Capacity : KG/HR Kg/hr Color : WHITE & BLUE Warranty : 1 YEAR FOR MANUFACTURING DIFFECT

Send Inquiry

SEND INQUIRY CALL ME FREE
